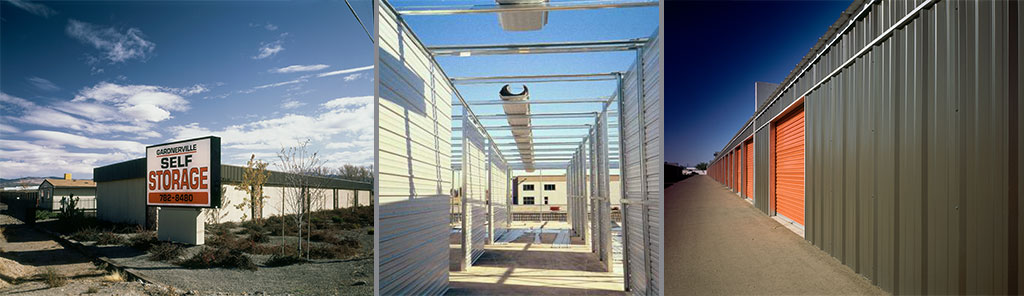

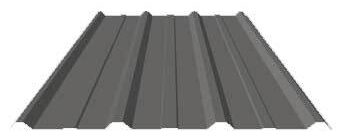

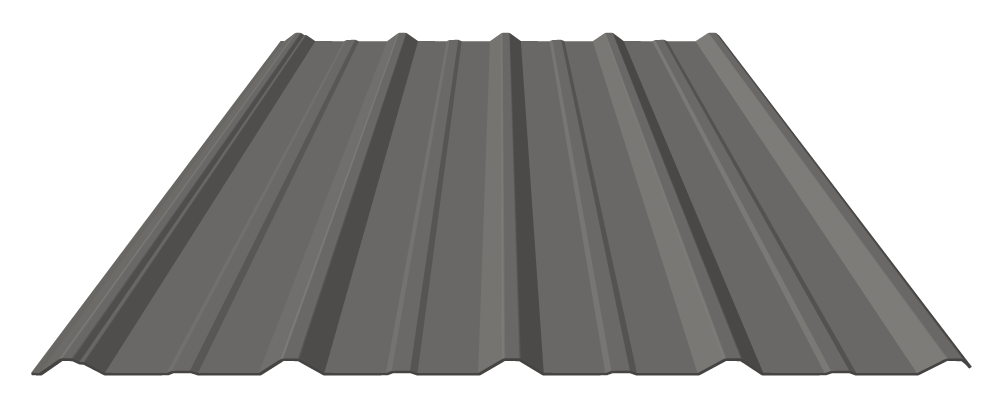

ASC Building Products’ mini storage solutions offers commercial metal roofing, siding and purlins to fit your needs. With panel options in a wide selection of colors, our exposed fastener metal panels and purlins offer practical, yet durable solutions for your exterior and framing needs.
The Metal Structural Support You Need – Purlin Offerings
We’re your source for steel components in the pre-engineered metal building, residential framing, and solar mounting markets. As a metal roofing and siding manufacturer who understands the benefits of metal, we offer a broad range of light gauge metal components to meet your mini storage or metal building needs.
Cee Purlins
CEE SECTION CAPABILITIES
Web Height (W): 4″ min – 20″ max
Flange Size (F): 1⅝″ min – 5″ max
Inside Bend Radius (R): 0.188″ typ.
Stiffener Lip Length (S): ⅝″ max lip with 1⅝″ flange, 1¼″ max lip with 3″ or greater flange. (Maximum stiffener lip length determined by flange width.)

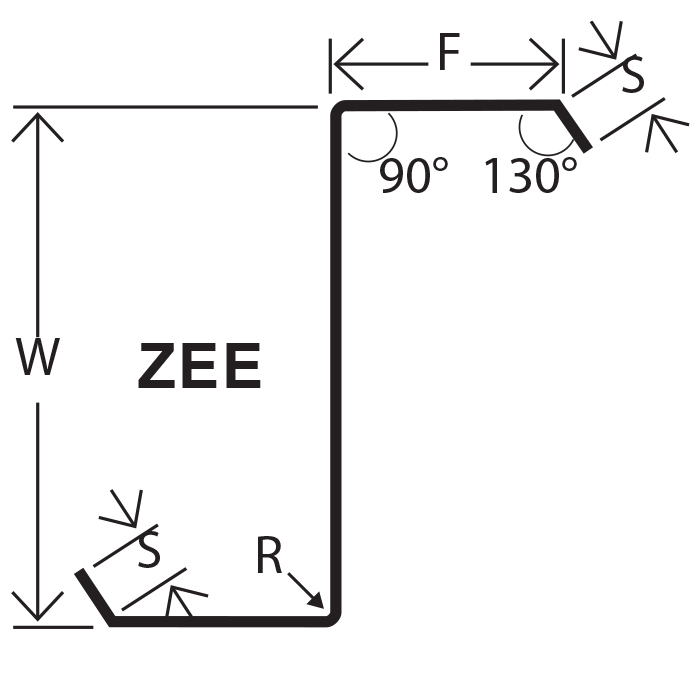

Zee Purlins
ZEE SECTION CAPABILITIES
Web Height (W): 4″ min – 20″ max
Flange Size (F): 1⅝″ min – 4½″ max
Inside Bend Radius (R): 0.188″ typ.
Stiffener Lip Length (S): ¾″ max lip with 1⅝″ flange, 1¼″ max lip with 2″ or greater flange. (Maximum stiffener lip length determined by flange width.)
Channel Purlins
CHANNEL CAPABILITIES
Web Height (W): 4″ min – 20″ max
Inside Bend Radius (R): 0.188″ typ.
Flange Size (F): 1⅝″ min – 4½″ max

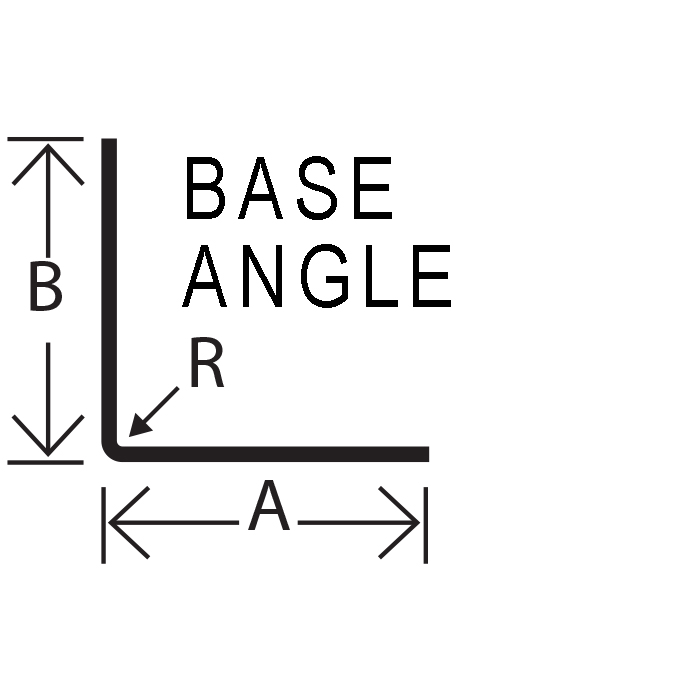

Base Angle Purlins
BASE ANGLE CAPABILITIES
Web Size (A): 2″ min – 5″ max
Leg Size (B): 2″ min – 5″ max
Inside Bend Radius (R): 0.188″ typ.

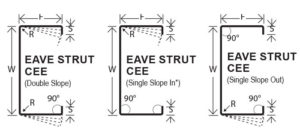

Eave Strut Cee Purlins
EAVE STRUT CEE CAPABILITIES
Slope: 1:12 – 4:12
Web Height (W): 8″ min – 14″ max
Flange Size (F): 2½″ min to 5″ max
Inside Bend Radius (R): 0.188″
Stiffener Lip Length (S): ⅞″
*Note: On Single Slope In Eave Strut 8″ web not available in 3:12 or 4:12 slope.
Features/Benefits
- Steel Thickness: 0.047″ (18ga) min to 0.105″ (12ga)
- Broad range of capabilities including several variations in part sizes and punching locations.
- Optimum versatility in punch patterns and penetration placements on web and flange areas.
- Large selection of standard penetration shapes and sizes.
- Proven Quality & Performance.
